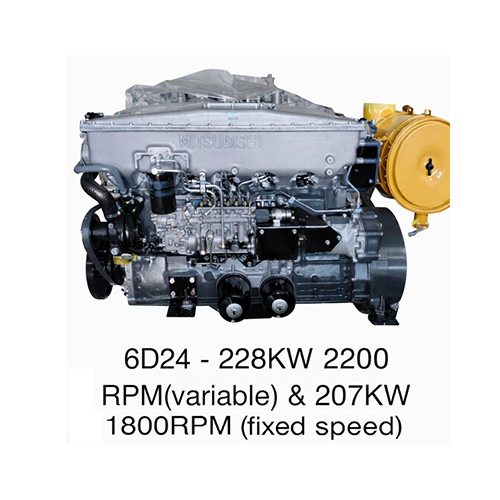

MITSUBISHI MARINE ENGINE – 6D24 – 228KW 2200 RPM
The Mitsubishi diesel engine 6D24-T is of high quality, delivers good performance, is highly effective, produces little sound and has a low emission. This engine is being used in a great number of industrial machines and construction applications such as:
- Hydraulic excavators
- (Crawl) Cranes
- Generator sets
- Drive of pumps
Features of the 6D24-TC:
- A piston cooler is used in the cylinder block
- Cavitation free slip-fit dry liner is easily replaced
- The piston is supported by an internal steel prop, to reduce the sound level of the piston
- The design of the combustion chamber minimizes smoke formation and the emission of smoke particulates
- The high positioned cranck shaft and the strong engine timing ensure a very reliable valve system
Specifications:
Specifications:
| Specifications | |
|---|---|
| Engine type | 6D24-Fuso, Water cooled- 4-cycle |
| Power output | 118 – 228 kW |
| Emission | Non-emission |
| Bore x stroke | 130 x 150 mm |
| Displacement | 11.945 liter |
| Length | 1473 mm |
| Width | 881 mm |
| Height | 1209 mm |
| Dry weight | 1000 kg |
